Main Feature
This machine mount different type slider on the zipper, operate easily,automatic fault detectionwork stable saving
labor,improve eficiency.
|
Auto Double Film Zipper Tape Sealing Machine
|
|
|
Model
|
PM-322
|
|
Power
|
0.75KW
|
|
Production
|
1600pcs/H with 60cm zipper
|
|
Volt
|
220V
|
|
Machine Weight
|
230Kgs
|
|
Machine Dimensioms(L×W×H)
|
1.60×0.50×1.90 m
|
|
Shipping Measurement(L×W×H)
|
0.70×0.70 ×1.40 m
|
Positioning System
This zipper machine system ensures proper zipper alignment prior to slider installation, guaranteeing correctorientation and smooth assembly.
Process Characteristics
Zipper tape guidance mechanism
Automatic orientation detection
Pre-slider insertion positioning
Slider Mounting System
This zipper machine system precisely installs sliders onto properly aligned zipper chains through automated mechanical processes.
Key Functional Components
Zipper feeding with guided positioning
Progressive sensor verification at each station
Controlled slider insertion
Final assembly inspection
This zipper machine universal system accommodates sliders of all configurations for precision zipper assembly.
Key Features:
Adjustable guide channels adapt to slider profiles
Multi-axis orientation correction
Shape-agnostic feeding mechanism
Pressure Roller System
This zipper machine system utilizes pressure rollers to compress and convey finished zippers, ensuring smoothdischarge from the machine.
System Features
Upper/lower rollers apply controlled pressure to finished zippers
Maintains constant output tension
Linear guided discharge
Efficiency
High-speed operation boosts productivity with minimal downtime.
Precision
Servo-controlled accuracy ensures perfect zipper placement every time.
User-Friendly
Intuitive controls and quick setup for effortless operation.
Durability
Industrial-grade construction for long-lasting performance.

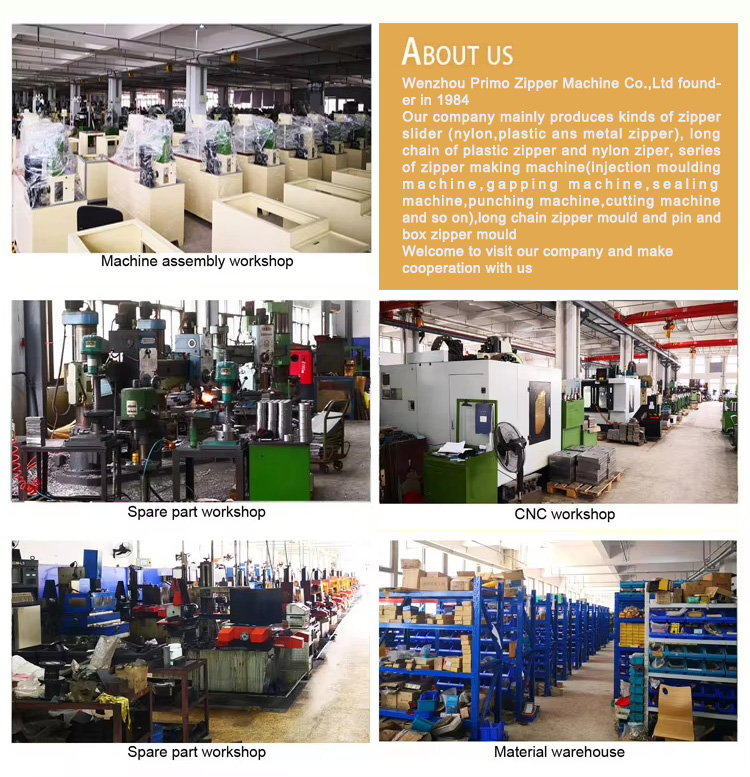

Wenzhou Primo Zipper Machine Co., Ltd(JESO) is a professional zipper making machine.
factory has been engaged in 1984. have 40 years of experience in zipper making machine,provides a combined service in the zipper production line.
If you have any enquiny about quotation or cooperation,please feel free to emal us at [email protected] or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products
"Plastic zipper gapping machine ltem:PM-021 Power:1.0KW Production:2000pcs/H with 60cm zipper Volt:380V Machine weight:270Kgs Machine size:1.60*0.65*1.85m Packing size:1.00*0.75*1.60m" Remarks 1. Gapping speed is fast and gapping length is accurate. 2. By adopting touch screen control, customers can adjust the machine gapping speed and gapping empty length election. 3.This machine can remove the teeth cleanly, there is no half teeth left on zippers.
View More
"Auto slider counting machine (normal type slider) ltem:PM-321 Power:0.75KW Production:3600pcs/ H with 20cm zipper Volt:220V Machine weight:245Kgs Machine size:1.30*0.55*1.75m Packing size:0.75*0.60*1.60m"
View More
" Ultrasonic close end cutting machine with robot arm ltem:PM-092-N Power:0.75KW Production:2400pcs/ Hwith 60cmzipper Volt:220V Machine weight:250Kgs Machine size:2.15*0.85*1.90m Packing size:1.00*0.70*1.71m "Commonality: 1. Different materials can not be commonly used by one machine. 2. Different sizes can not be commonly used by one machine. 3. Same slider body with different fancy pullers can be commonly used by one machine by changing slider mounting mould.
View More
Ultrasonic open end cutting machine with robot arm ltem:PM-082-P Power:0.75KW Production:2400pcs/H w ith 60cm zipper Volt:220V Machine weight:250Kgs Machine size:2.15*0.85*1.90m Packing size:1.00*0.70*1.70m
View More
