Main Feature
This machine mount different type slider on the zipper, operate easily,automatic fault detectionwork stable saving
labor,improve eficiency.
|
Auto Double Film Zipper Tape Sealing Machine
|
|
|
Model
|
PM-321
|
|
Power
|
0.75KW
|
|
Production
|
1600pcs/H with 60cm zipper
|
|
Volt
|
220V
|
|
Machine Weight
|
230Kgs
|
|
Machine Dimensioms(L×W×H)
|
1.60×0.50×1.90 m
|
|
Shipping Measurement(L×W×H)
|
0.70×0.70 ×1.40 m
|

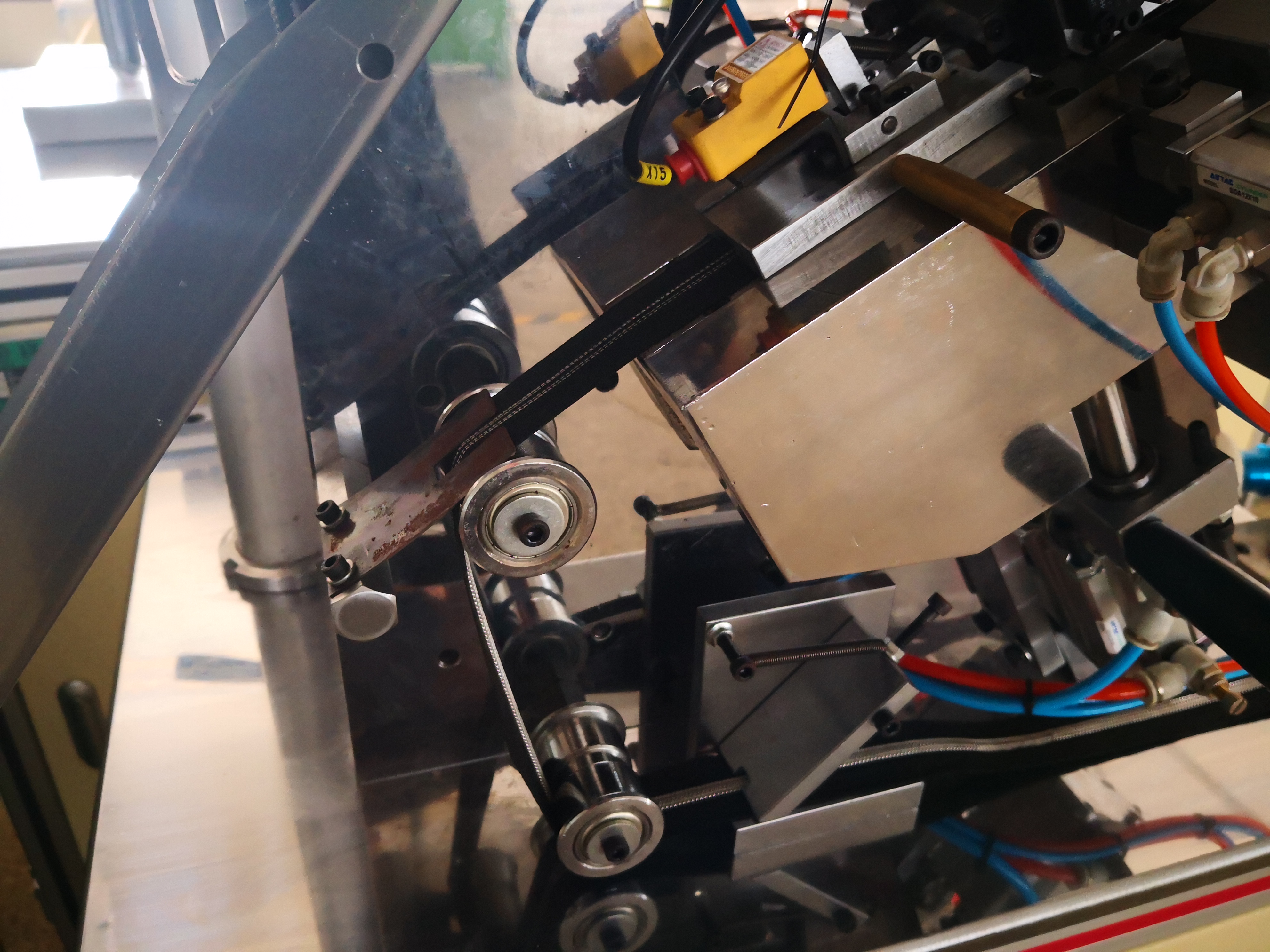

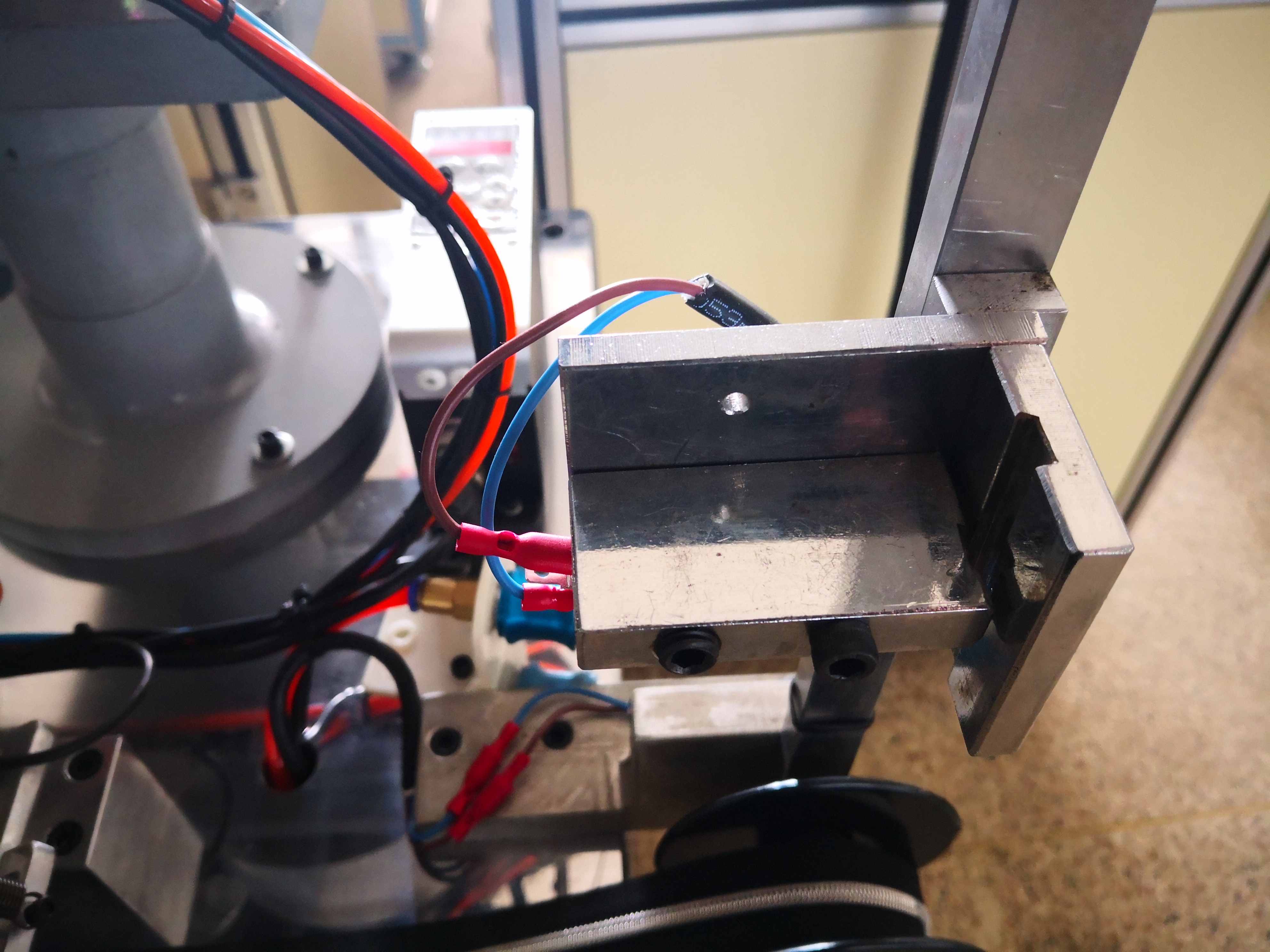

Positioning System
This zipper machine system ensures proper zipper alignment prior to slider installation, guaranteeing correctorientation and smooth assembly.
Process Characteristics
Zipper tape guidance mechanism
Automatic orientation detection
Pre-slider insertion positioning

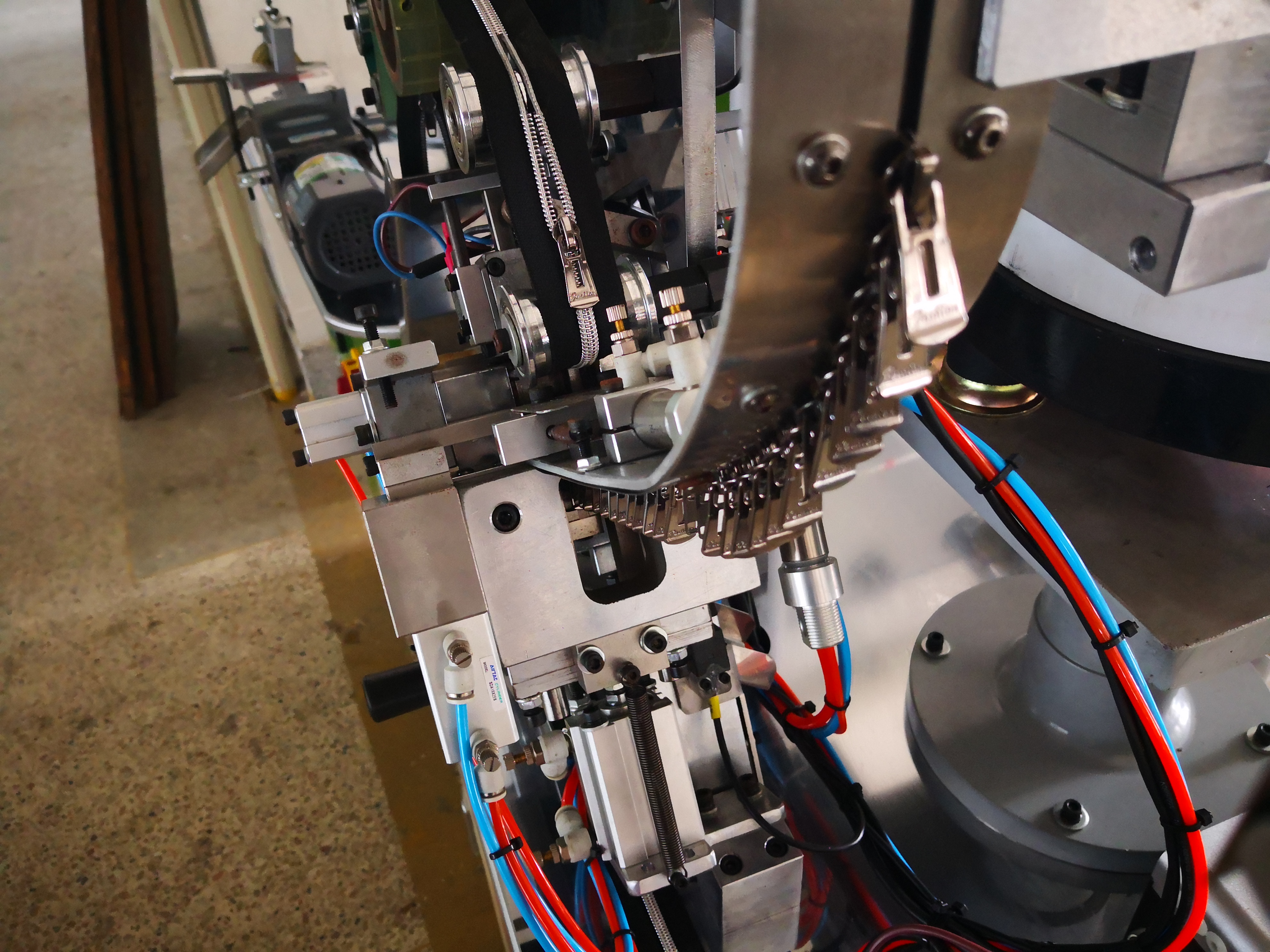

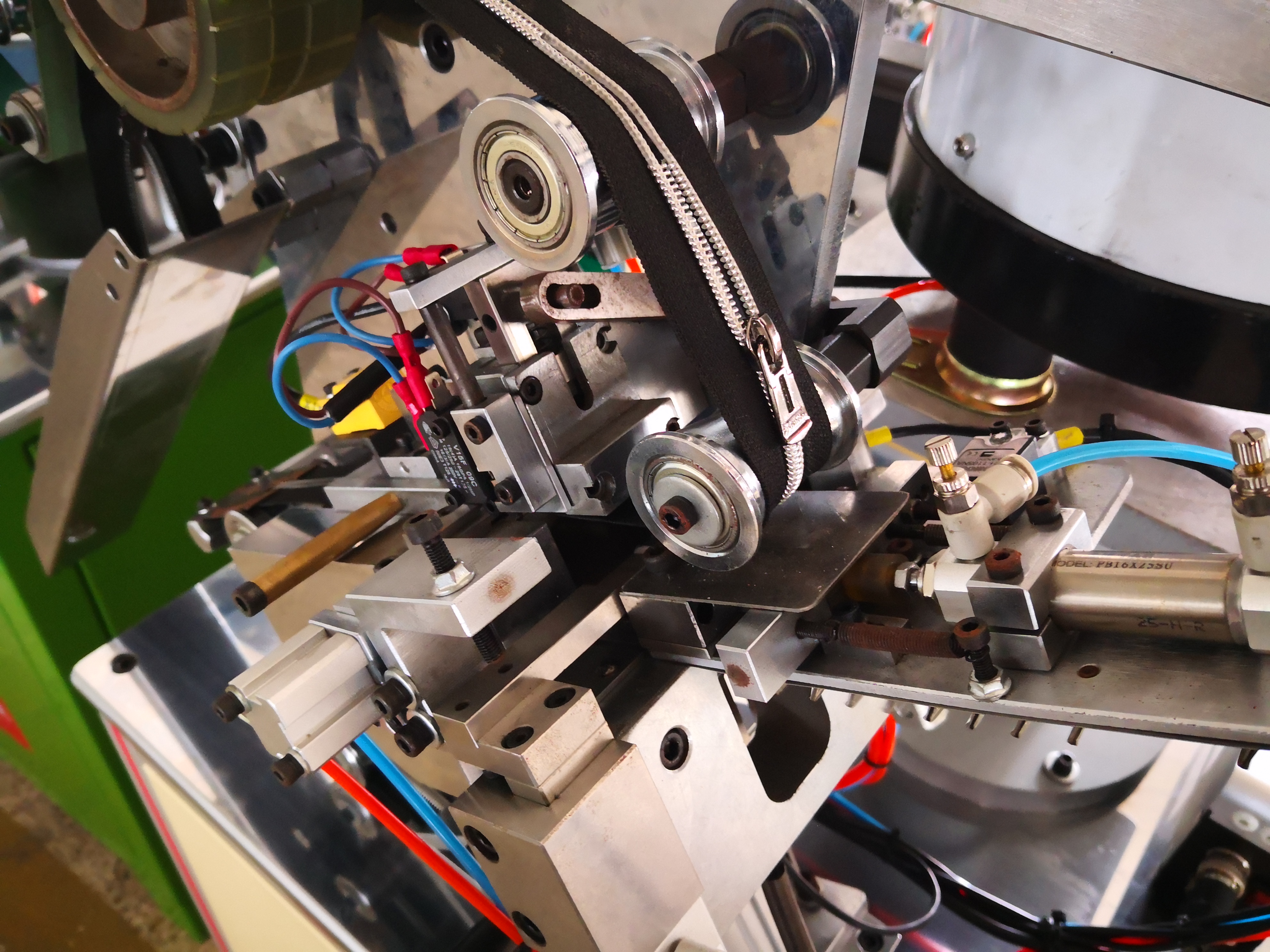

Slider Mounting System
This zipper machine system precisely installs sliders onto properly aligned zipper chains through automated mechanical processes.
Key Functional Components
Zipper feeding with guided positioning
Progressive sensor verification at each station
Controlled slider insertion
Final assembly inspection

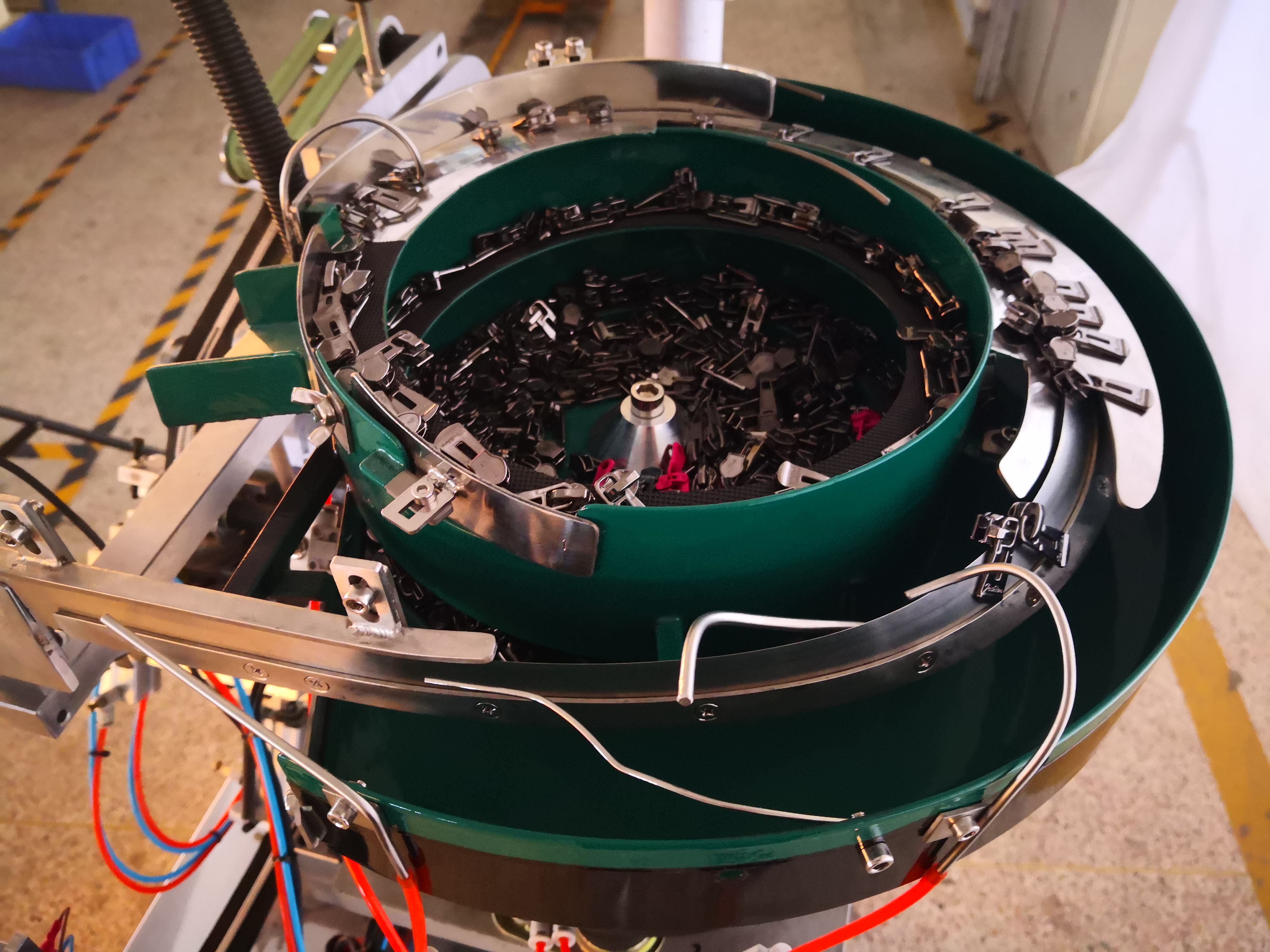

This zipper machine universal system accommodates sliders of all configurations for precision zipper assembly.
Key Features:
Adjustable guide channels adapt to slider profiles
Multi-axis orientation correction
Shape-agnostic feeding mechanism

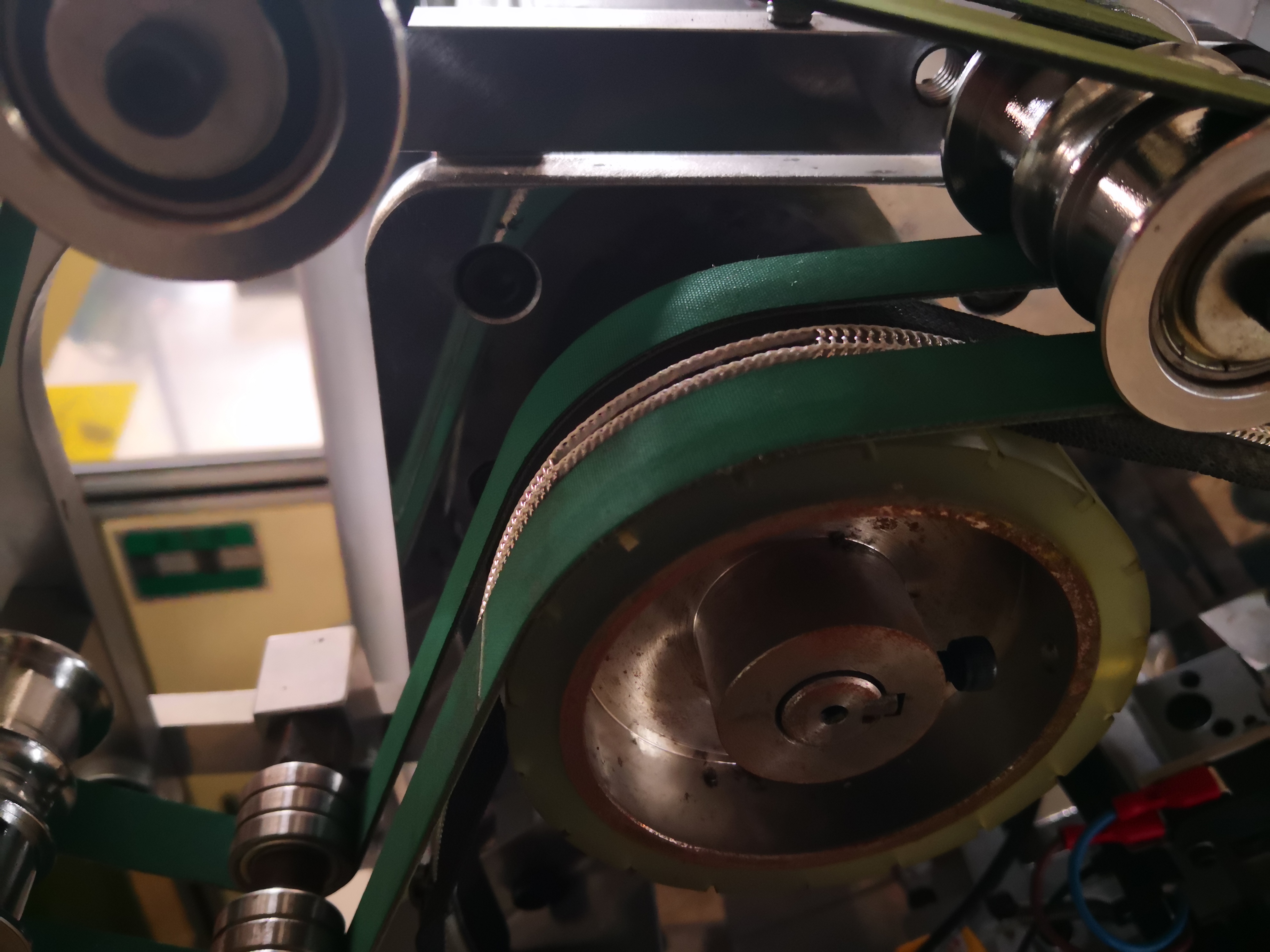

Pressure Roller System
This zipper machine system utilizes pressure rollers to compress and convey finished zippers, ensuring smoothdischarge from the machine.
System Features
Upper/lower rollers apply controlled pressure to finished zippers
Maintains constant output tension
Linear guided discharge
Efficiency
High-speed operation boosts productivity with minimal downtime.
Precision
Servo-controlled accuracy ensures perfect zipper placement every time.
User-Friendly
Intuitive controls and quick setup for effortless operation.
Durability
Industrial-grade construction for long-lasting performance.

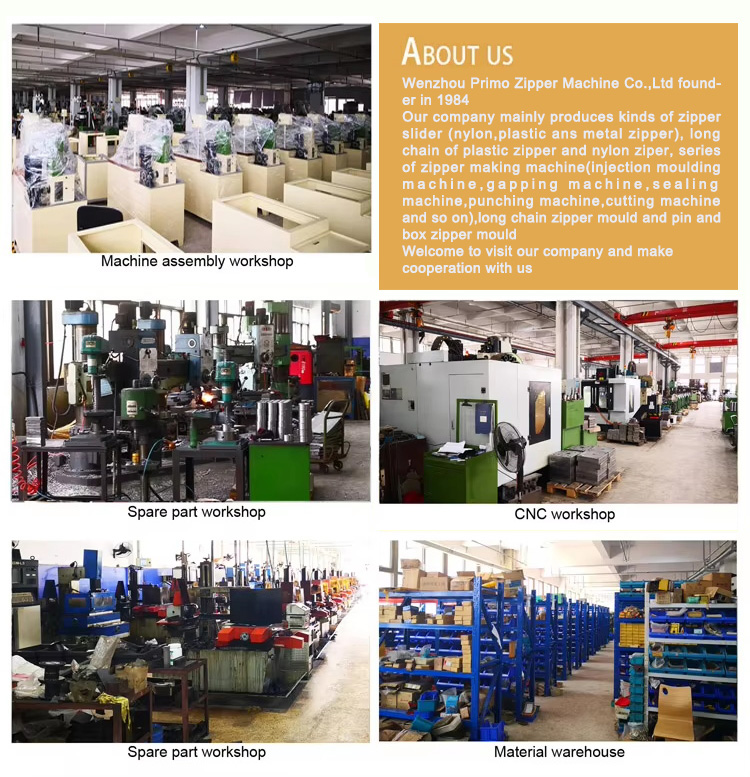

Wenzhou Primo Zipper Machine Co., Ltd(JESO) is a professional zipper making machine.
factory has been engaged in 1984. have 40 years of experience in zipper making machine,provides a combined service in the zipper production line.
If you have any enquiny about quotation or cooperation,please feel free to emal us at [email protected] or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products
