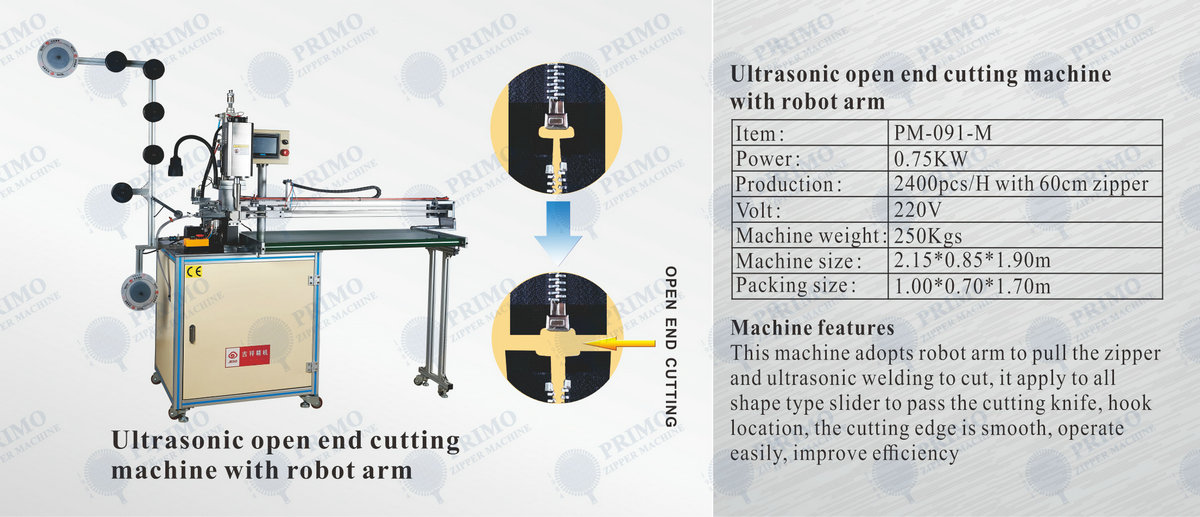

PM-091-M Ultrasonic Open-End Zipper Cutting Machine

PM-091-M is listed for ultrasonic cutting of open-end zippers. Review the cutting operation against the finished zipper construction and the incoming material before selecting a configuration.

Confirm the open-end construction

Provide samples, photographs or drawings showing the chain, tape, slider, pin and box arrangement. Specify the finished length, required cutting position and acceptance criteria for the cut edge. The material, size and component arrangement must be checked for the proposed configuration.

Information for an equipment enquiry

• Zipper material, chain size and open-end construction.
• Slider and separating-component details, including their position before cutting.
• Required length range, target output and planned operating conditions.
• Available voltage, phase, power supply and installation space.
• Sample requirements and the method for checking the finished cut.

Agree the configuration and order terms

Confirm the applicable material and size range, cutting setup, output, electrical requirements and machine dimensions in the model-specific quotation or technical specification. Any sample trial and acceptance procedure should be agreed before ordering.

Delivery arrangements and any installation, training, spare-parts or other support requirements are confirmed for the order in the quotation or contract.

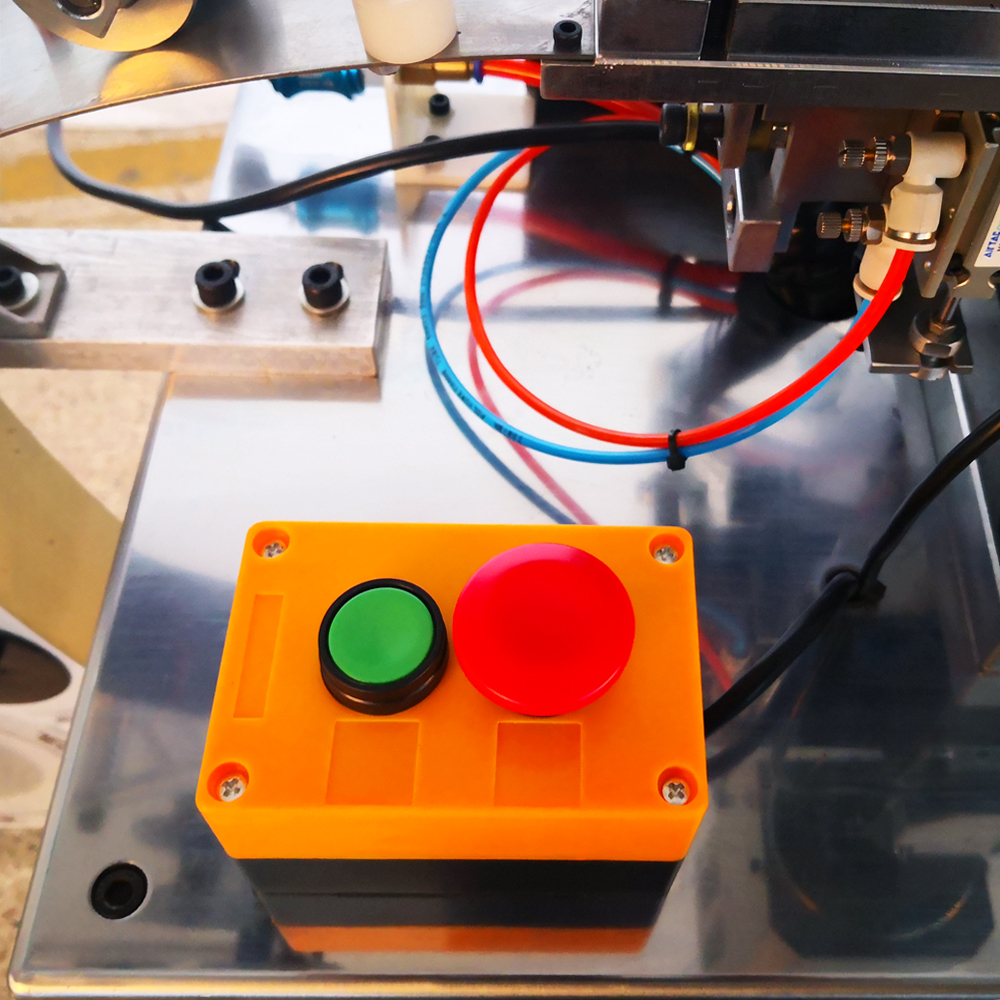

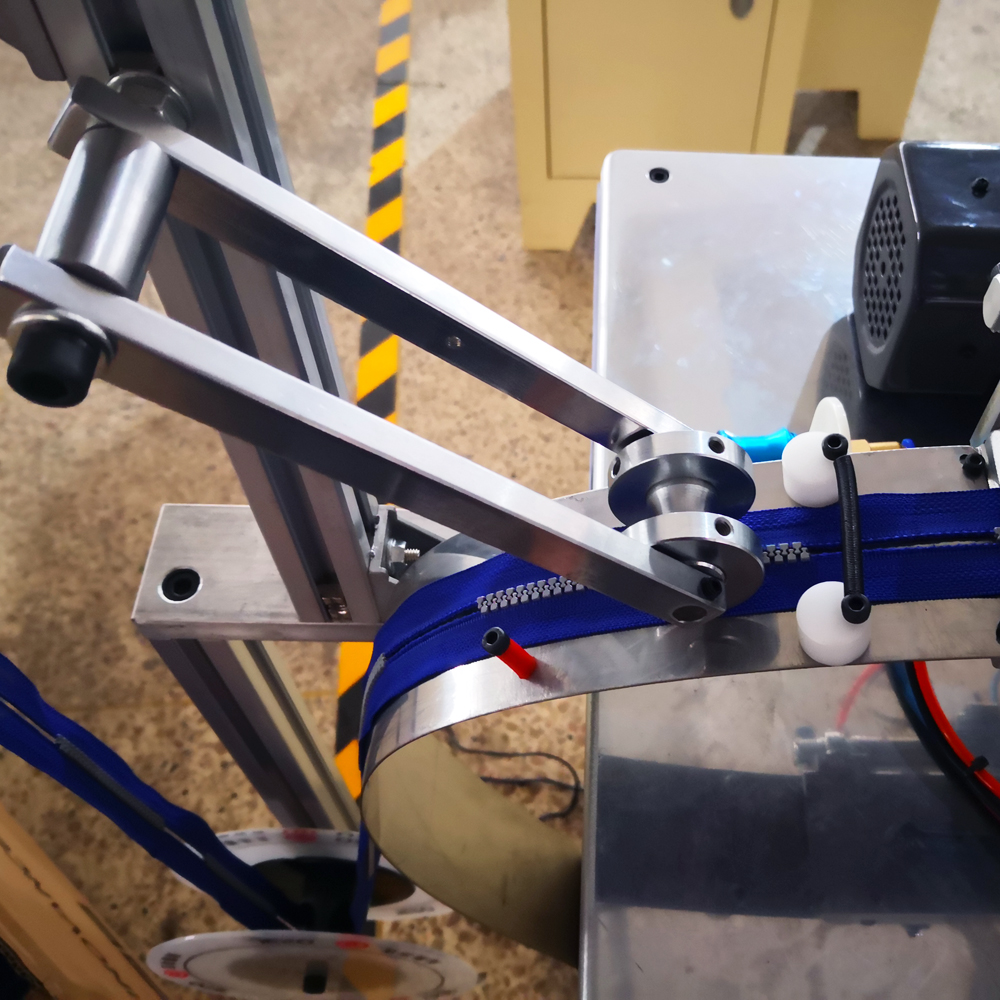

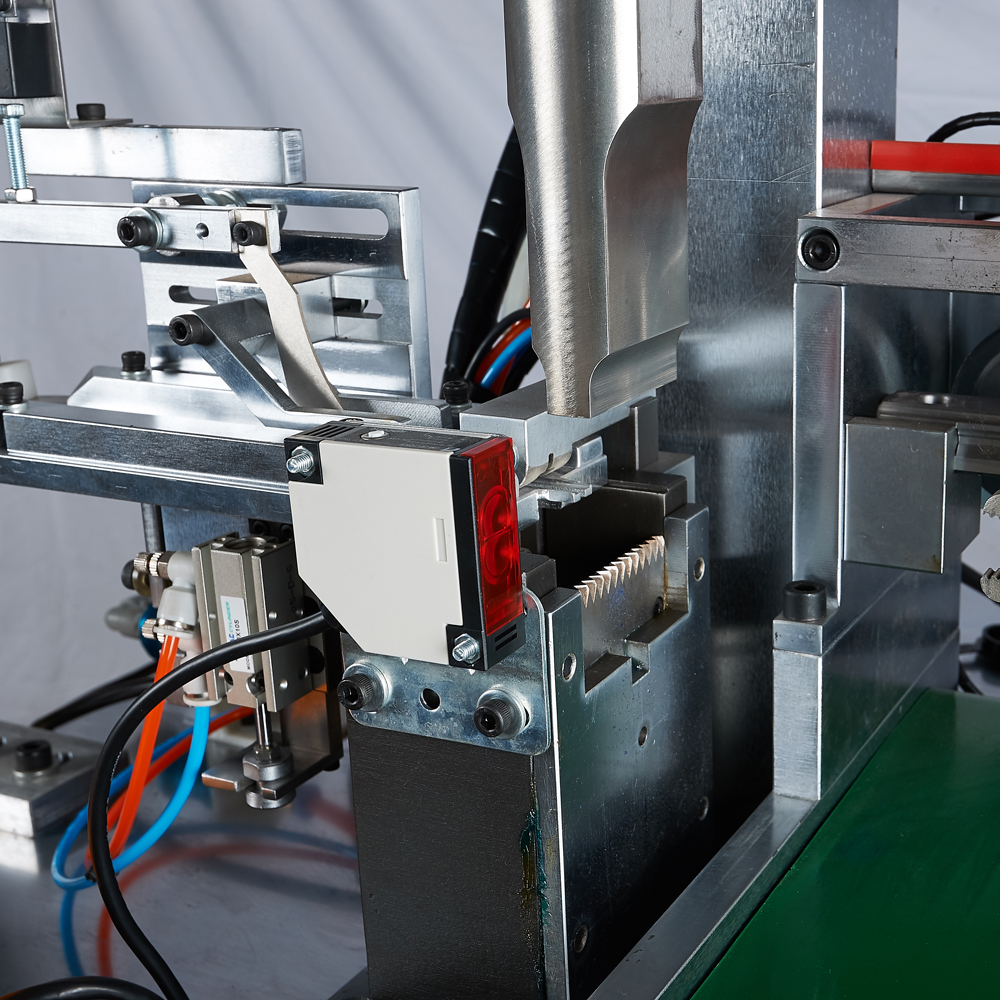

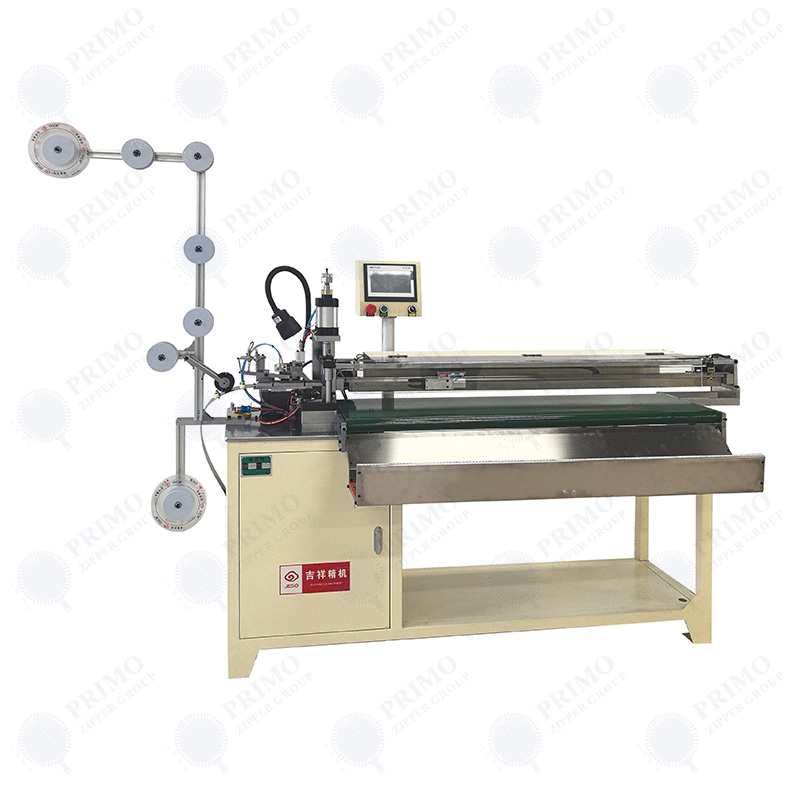

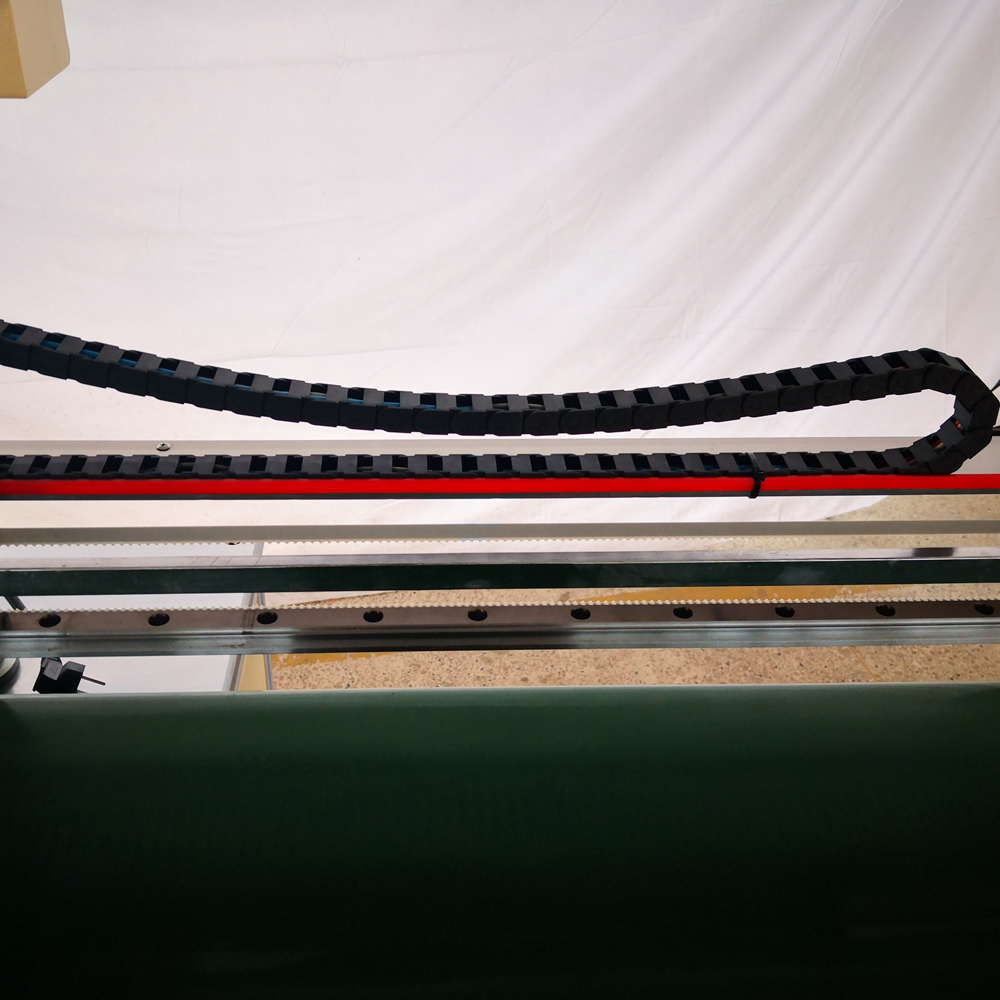

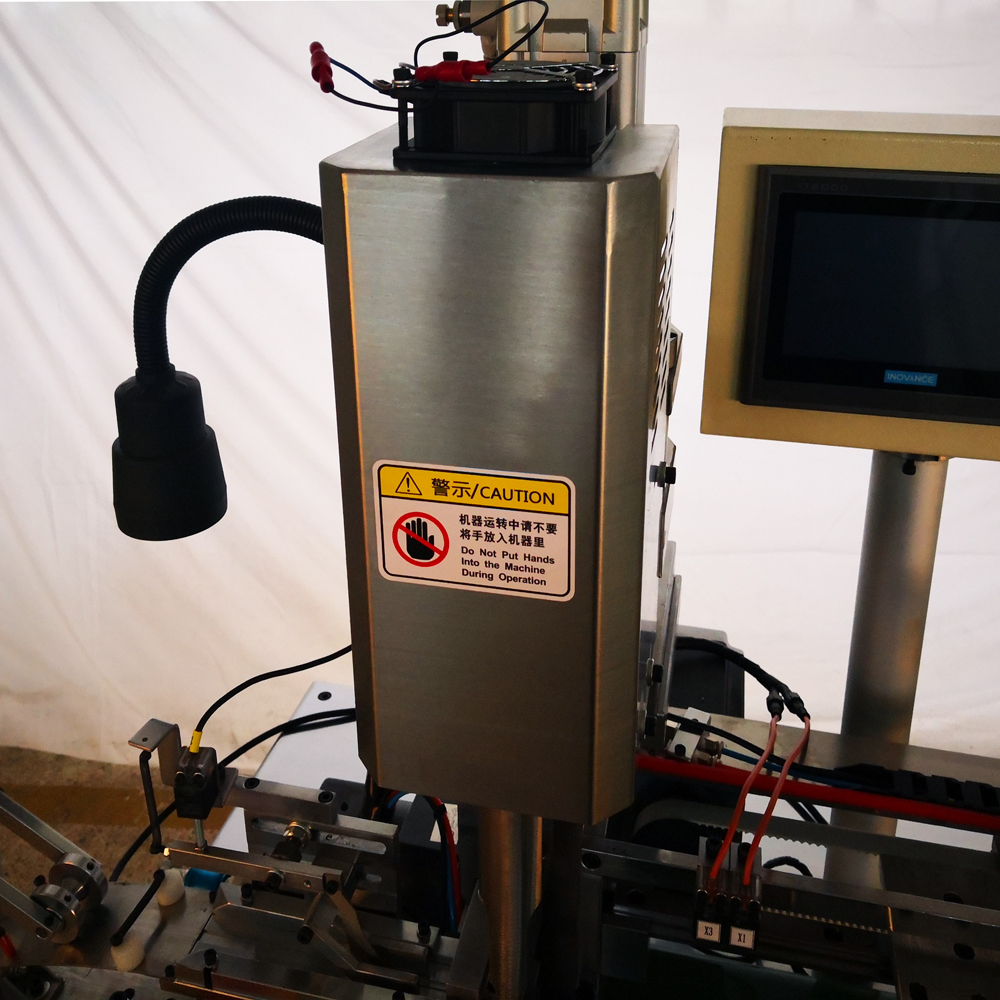

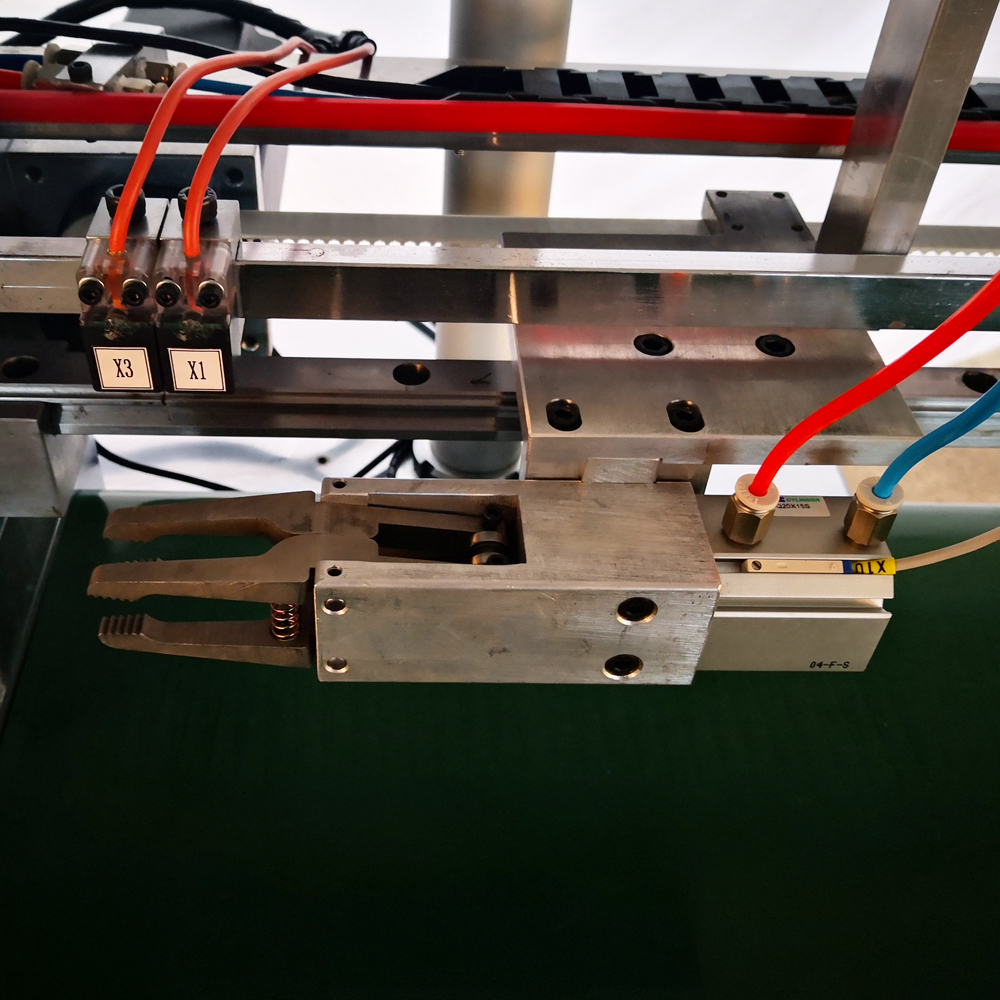

Product images
