PM-091-P Ultrasonic Open-End Zipper Cutting Machine with Robot Arm

Plastic Open-End Zipper MC

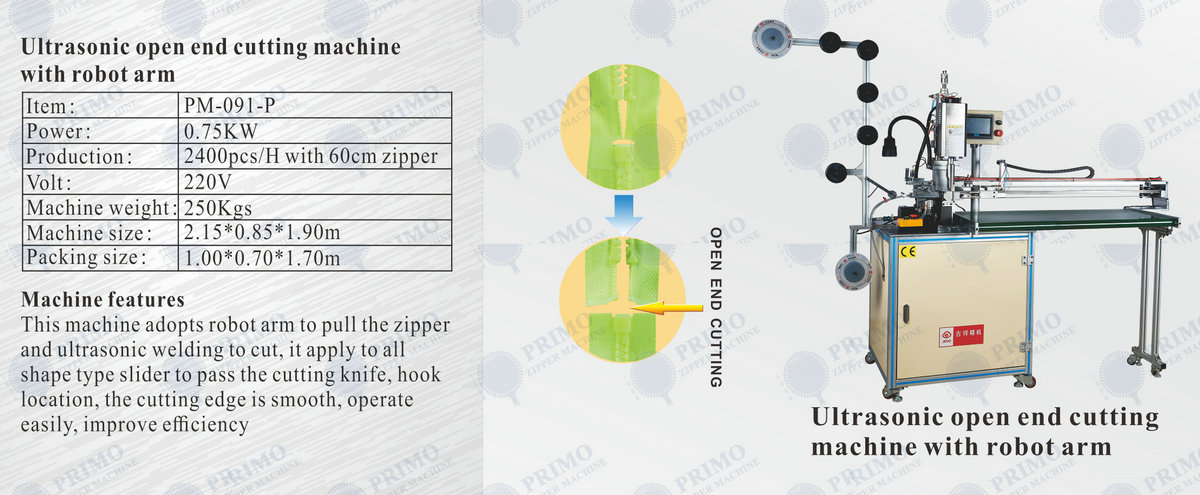

"Ultrasonic open-end zipper cutting machine with robot arm
ltem:PM-091-P
Power:0.75KW
Production:2400pcs/H with 60cm zipper
Volt:220V
Machine weight:245Kgs
Machine size:2.15*0.55*1.45m
Packing size:0.80*0.60*1.52m"

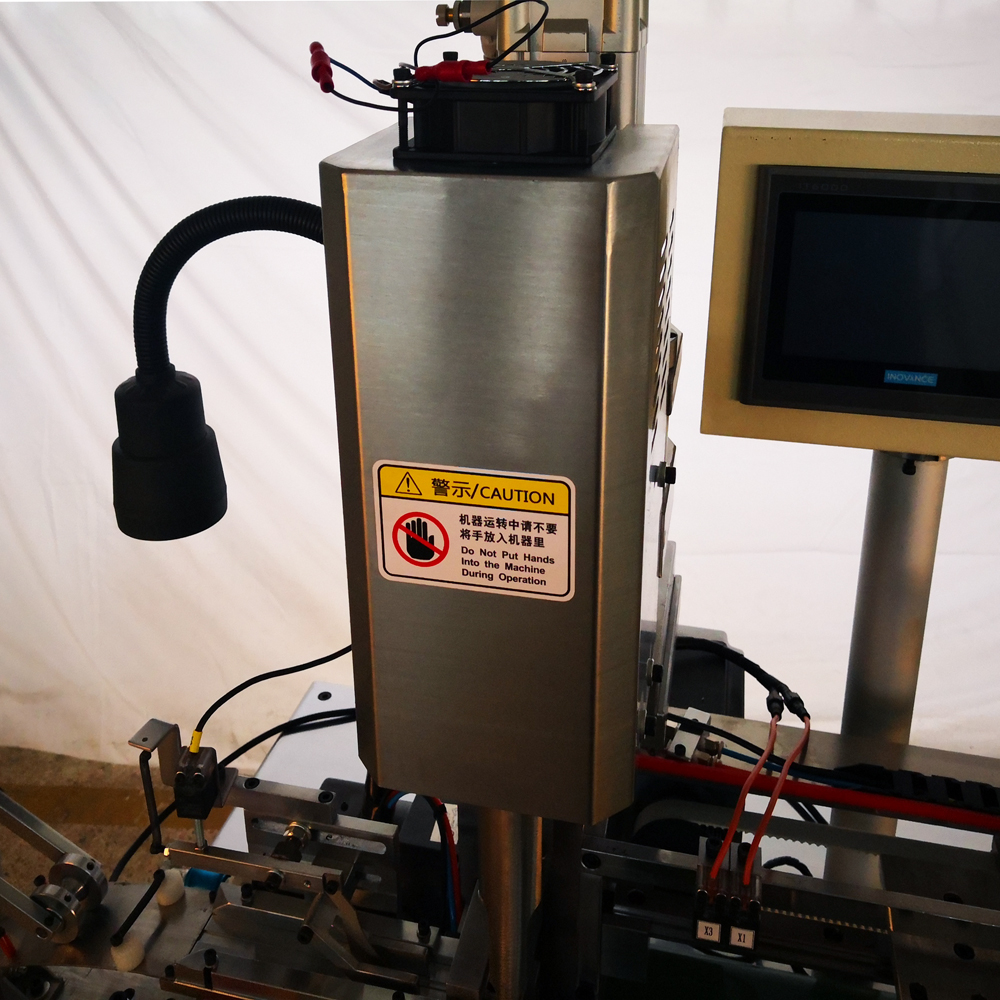

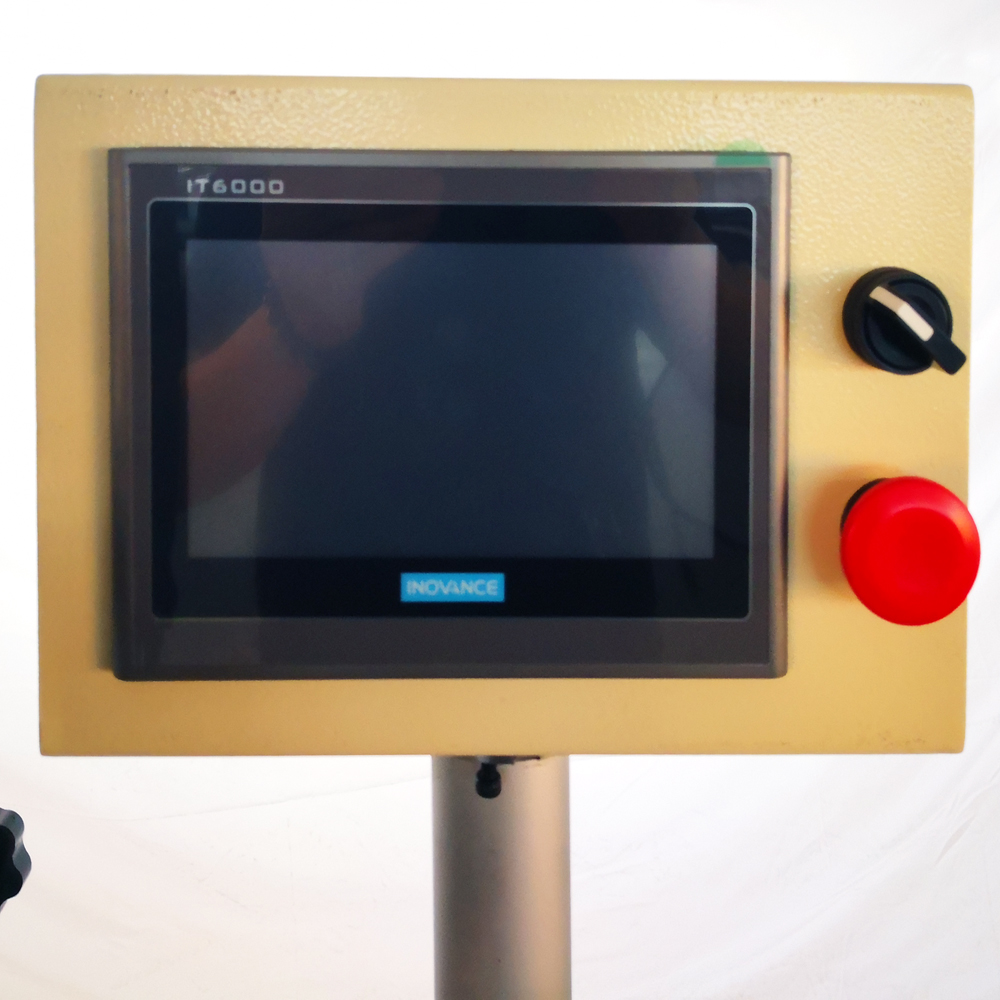

Abstract : This cutting machine is with touch sreen. It uses ultrasonic cutting to avoid easy loose edge problem of zippers, improve the strength and with low noise.

Discuss this product by email

Share the product or model you’re interested in, along with the material, specifications, intended use and required quantity or output.

Or email us directly at william@primozippermachine.com.

Product Description

PRIMO PM-091-P Ultrasonic open-end zipper cutting machine with robot arm

Summary : This cutting machine is with touch sreen. It uses ultrasonic cutting to avoid easy loose edge problem of zippers, improve the strength and with low noise.

Product Name:PM-091-P Ultrasonic open-end zipper cutting machine with robot arm

Model number :PM-091-P

Abstract : This cutting machine is with touch sreen. It uses ultrasonic cutting to avoid easy loose edge problem of zippers, improve the strength and with low noise.

Advantages:

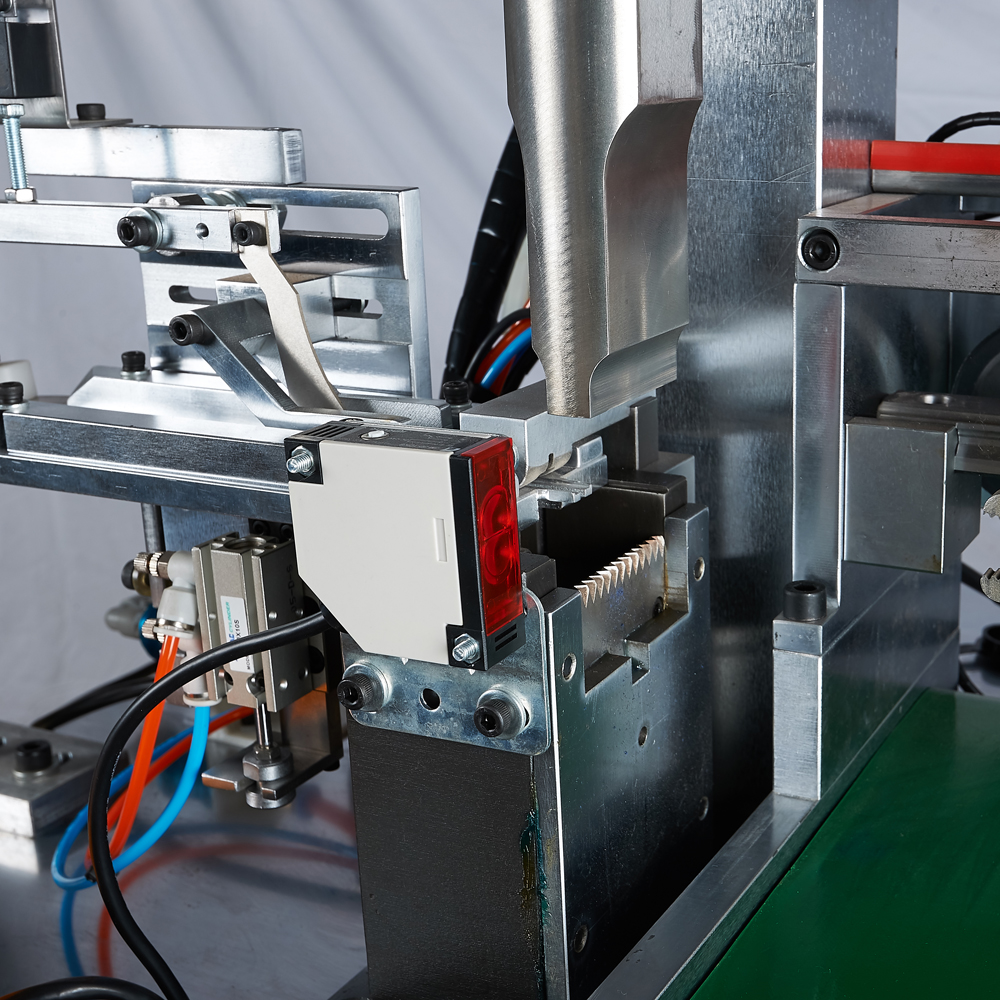

1- It uses ultrasonic cutting to avoid easy loose edge problem of zippers, improve the strength and with low noise.

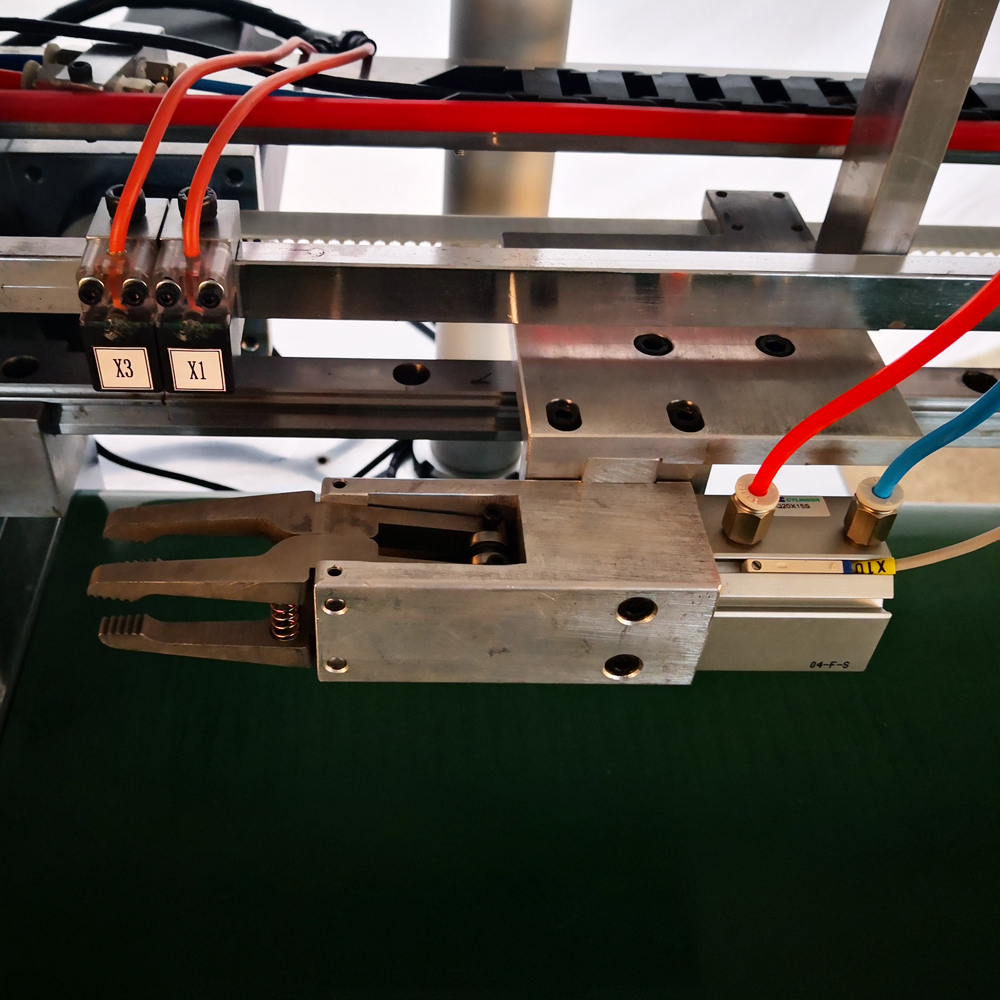

2- This machine is with mechanical hand which will pull the zipper out for cutting quickly so that big fancy pullers will not get stuck. As a result, this machine is suitable for zippers with fancy pullers. If you only need to cut zippers with normal Puller, we do not advice you to buy cutting machine with machanical hand of which the output will be at at 1/3 than normal cutting machine.

3- Same size of nylon zipper, metal zipper, plastic zipper which with "T" type hole punching mould can be cut by the same machine. But zippers with butterfly 6 holes "T" type hole punching mould , straight hole punching mould and other Type of hole punching moulds should use separate machine. Only 3# and 5# zippers can be cut by the same machine, other size zippers should be cut by different machine.
